The 6400XT Wood Hog Horizontal Grinder represents the next generation in grinding technology, not just processing wood waste, but eliminating inefficiencies. This machine delivers a substantial increase in productivity, handling large volumes of material quickly and efficiently. The time saved translates directly into increased revenue.
As Morbark's largest horizontal grinder, the 6400XT is built for operations requiring the utmost in durability and production. It comes equipped with cutting-edge grinding technology, ensuring precise and consistent results with every use. From variable speed controls to intelligent monitoring systems, this machine sets the standard for modern wood processing
Specifications & Details
| GENERAL | US | METRIC |
| Length (Operating) | 63' 3" | 19.27 m |
| Length (Transport) with Dolly | 49' | 14.9 m |
| Length (Transport) without Dolly | 43' 4 3/4" | 13.2 m |
| Width | 9' 9 1/2" | 2.9 m |
| Height (Transport) | 9'9" | 3 m |
| Approx. Weight (with Dolly) | 11' 11" | 3.63 m |
| Approx. Weight (without Dolly) | 100,500 lb | 45,586 kg |
| Engine | 91,000 lb | 41,276 kg |
| Horsepower | CAT C27-32 Diesel | |
| Fuel tank capacity | 1,050 to 1,200 HP | 783 to 895 kW |
| Hydraulic oil capacity | 59 gallons | 223 L |
| Infeed Opening | 60"x 60" | 152.4 cm x 152.4 cm |

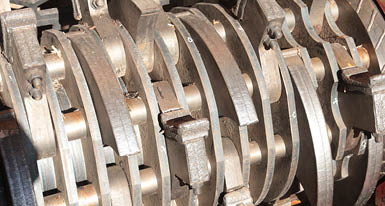

| Hammermill Size | 42" x 57 5/8" | 106.68 cm x 146.37 cm |
| Screen Area | 5,406 sq in | 34,877 sq cm |
| Tracks | NT38 Strickland Undercarriage with (500 mm) triple grouser pads |
What applications are Morbark horizontal grinders used in?
The Morbark Wood Hog horizontal grinder is the best industrial-grade grinder you can get for processing brush, yard waste, clearing debris, storm debris, C&D waste, other mixed woody feedstocks, and asphalt shingles into saleable products.
What standard features are included on Morbark horizontal grinders?
All Morbark Wood Hogs come standard with the Morbark Integrated Control System (MICS) to maximize production and engine efficiency; a laser-cut factory-balanced rotor for unsurpassed durability; and an aggressive feed wheel with an internal poclain drive that has no chains or sprockets for more torque and reduced maintenance.
What transportation options are available for Morbark horizontal grinders?

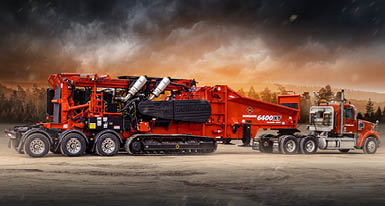

All Morbark Wood Hog horizontal grinders are available in wheeled or tracked versions to meet the needs of your specific applications and terrain. The 3000X and 2400X models are also configured for multiple applications and global markets without additional design considerations, while the Morbark 6400XT Wood Hog Horizontal Grinder Next Generation includes a Transport Dolly System option equipped with independent air-ride suspension and remote-controlled front and rear hydraulic locks, allowing a single operator to attach the transport dolly in minutes.

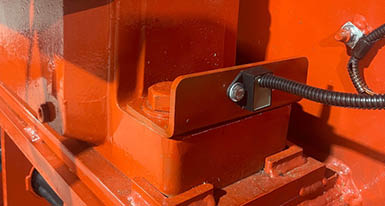

What is the VTection Vibration Detection System?
The patent-pending VTECTION® Vibration Detection System monitors rotor vibration to reduce damage from contact with ungrindable objects or other causes of damaging vibration like an out-of-balance rotor, broken insert, or defective bearing. When coupled with Morbark's Break-Away Torque Limiter, dual hammermill protection - both mechanical and electrical - is achieved.

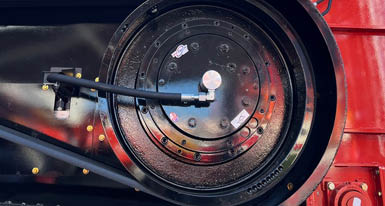

What is the advantage of the PT Tech Torque Limiter?
Available on the Morbark 6400XT Wood Horizontal Grinder Next Generation, the PT Tech Torque Limiter utilizes PT Tech technology making driveline protection better than ever. With virtually zero maintenance, the PT Tech Torque limiter electronically reacts and hydraulically separates the driveline from the hammermill to protect your investment. Exclusive to Morbark, this product is currently available on the 6400X series Wood Hogs and will be available soon on other models.
How can I purchase a Morbark horizontal grinder or replacement parts?
Morbark horizontal grinders and genuine OEM replacement parts can be purchased through authorized dealers and distributors. You can find a dealer near you by using our dealer locator tool.
Keep your equipment running in top condition with genuine OEM Morbark parts! We offer the highest-quality wear parts, genuine Morbark replacement parts, wear parts for competitive equipment, remanufactured parts with a full warranty, used parts, full-service hydraulics, and much more!
With regular factory trainings for our dealers’ service professionals, you can also be sure that our global network of dealers will give you first-class support wherever you are.
Please click the Find a Dealer button below to locate your nearest Morbark dealer, or call our Parts/Service Customer Support Call Center at 800.255.8839.
