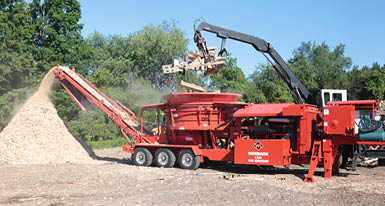

Experience the unmatched performance of the Morbark 1300B Tub Grinder, blending heavy-duty construction with cutting-edge technology. Featuring the innovative Morbark Integrated Control System, this grinder allows you to monitor critical machine parameters effortlessly.

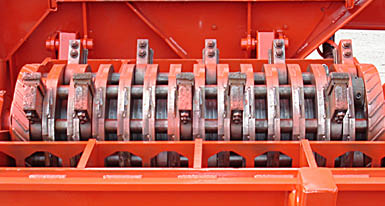

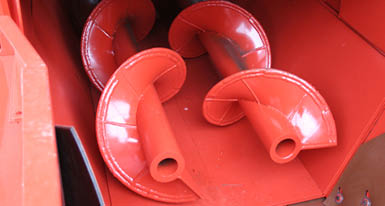

Equipped with a full breakaway torque limiter system, hydraulic augers, and a precision laser-cut hammer mill, the Morbark 1300B stands out as the most sought-after grinder in the industry. Its replaceable, one-piece anvil and tub floor wear plates streamline maintenance, reducing downtime significantly.
For added convenience, consider the optional track undercarriage, enabling seamless transportation of the grinder directly to the material site. Discover why the Morbark 1300B Tub Grinder sets the standard for efficiency and reliability in the market.
Specifications & Details
| GENERAL | US | METRIC |
| Length (transport) | 43' 7.5" | 13.3 m |
| Length (operating) | 60' 10" | 18.54 m |
| Height (transport) | 13' 6" | 4.11 m |
| Width | 11' 11" | 3.66 m |
| Gross Weight (NCL) | 76,500 lb | 34,700 kg |
| Gross Weight (WCL) | 88,000 lb | 39,916 kg |
| Axle Weight (NCL) | 50,520 lb | 22,915 kg |
| Axle Weight (WCL) | 56,000 lb | 25,400 kg |
| Tongue Weight (NCL) | 24,060 lb | 10,915 kg |
| Tongue Weight (WCL) | 30,520 lb | 13,845 kg |
| Engine | CAT | |
| Horsepower | 1,050 HP | 783 kW |
| Fuel Capacity (tank) | 500 gallons | 1,912 litres |
| Hydraulic Oil | 174 gallons | 659 litres |
| Screen Area | 3,730 sq in | 24,064 sq cm |
| Tires | 255/70R/22.5 Dual Tires | |
| Towing Arrangement | Fifth wheel | |
| Brakes | Air | |
| Tracks | Available on NCL model |
- Model 400 knuckleboom loader with 36" (91.44 cm) Tarantula grapple, 360° turn motor and stationary operator’s cab
- 14' (4.27 m) diameter tub flare with flat sides to maintain an 11'11" (3.63 m) width
- ESPAR heating system for cold-weather start
What applications are Morbark tub grinders used in?
Morbark tub grinders are designed for the most challenging recycling applications. They excel at processing yard waste, pallets and other mixed woody feedstocks into saleable products. They can be used for processing whole trees, stumps, brush, construction and demolition debris, wood waste, and green waste.
What features are included on Morbark tub grinders?
Morbark tub grinders are equipped with hydraulic augers that allow the operator to quickly remove product beneath the mill, a full breakaway torque limiter system to protect the engine and clutch, a laser-cut, factory-balanced mill, and more.
What is the difference between tub grinders and horizontal grinders?
Both Morbark horizontal and tub grinders excel at processing wood waste into saleable products. Choosing between a horizontal grinder and a tub grinder depends on your specific needs, including the types of materials you need to process, desired output size and consistency, mobility requirements, space availability, and budget considerations. Horizontal grinders allow for continuous feeding of long and straight material, while tub grinders are ideal at processing bulky and irregularly shaped materials like whole trees, stumps, brush, and demolition debris.
What is the benefit of the externally adjustable break-away torque limiter?
For over a decade, Morbark's exclusive, Break-away Torque Limiter, has proven to be the industry's best solution for protecting the driveline of a horizontal or tub grinder from catastrophic failure. It reacts in milliseconds to a direct hit. No other system has this response time, which ultimately will save you downtime and money. The system is a standard feature on most current models of Morbark Wood Hog Horizontal Grinders and Tub Grinders.
What safety features are included in Morbark tub grinders?
Safety features may include emergency stop buttons, safety guards and shields, remote control operation, automatic shutdown systems, and hydraulic tilt tub for easy maintenance and inspection. These features help protect operators and ensure safe operation.
How can I purchase a Morbark tub grinder or replacement parts?
Morbark tub grinders and genuine OEM replacement parts can be purchased through authorized dealers and distributors. You can find a dealer near you by using our dealer locator tool.
