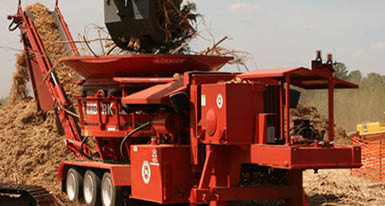

The Morbark 1200XL Tub Grinder is a versatile mid-sized grinder equipped with advanced features for optimal performance. Benefit from the Morbark Integrated Control System, providing comprehensive diagnostics for seamless operation.

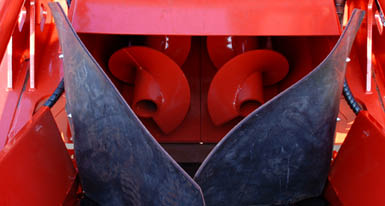

Experience enhanced torque and efficiency with dual hydraulic tub drive motors, while hydraulic augers ensure swift product removal beneath the mill. The grinder's laser-cut, factory-balanced hammermills with forged hammers ensure durability and smooth operation, setting a standard for reliability.
Enjoy easy maintenance with tub tilt functionality, allowing convenient access to grates and the anvil. The Morbark 1200XL Tub Grinder for a perfect blend of power, durability, and user-friendly design.
Specifications & Details
| GENERAL | US | METRIC |
| Length (transport) | 38' 3.75" | 12 m |
| Length (operating) | 57' 7" | 17.6 m |
| Height (transport) | 12'10" | 3.9 m |
| Width | 10' 4" | 3.2 m |
| Gross Weight (NCL, approximate) | 55,000 lb | 24,948 kg |
| Axle Weight (NCL, approximate) | 43,840 lb | 19,885 kg |
| Tongue Weight (NCL, approximate) | 11,810 lb | 5,360 kg |
| Engine | CAT | |
| Horsepower | 800 to 875 HP | 596 to 652 kW |
| Fuel Capacity (tank) | 300 gallons | 1,135 litres |
| Hydraulic Oil | 174 gallons | 659 litres |
| Screen Area | 2,480 sq in | 16,000 sq cm |
| Tires | (8) 255/70R/22.5 | |
| Towing Arrangement | Fifth wheel | |
| Brakes | Air |
What applications are Morbark tub grinders used in?
Morbark tub grinders are designed for the most challenging recycling applications. They excel at processing yard waste, pallets and other mixed woody feedstocks into saleable products. They can be used for processing whole trees, stumps, brush, construction and demolition debris, wood waste, and green waste.
What features are included on Morbark tub grinders?
Morbark tub grinders are equipped with hydraulic augers that allow the operator to quickly remove product beneath the mill, a full breakaway torque limiter system to protect the engine and clutch, a laser-cut, factory-balanced mill, and more.
What is the difference between tub grinders and horizontal grinders?
Both Morbark horizontal and tub grinders excel at processing wood waste into saleable products. Choosing between a horizontal grinder and a tub grinder depends on your specific needs, including the types of materials you need to process, desired output size and consistency, mobility requirements, space availability, and budget considerations. Horizontal grinders allow for continuous feeding of long and straight material, while tub grinders are ideal at processing bulky and irregularly shaped materials like whole trees, stumps, brush, and demolition debris.
What is the benefit of the externally adjustable break-away torque limiter?
For over a decade, Morbark's exclusive, Break-away Torque Limiter, has proven to be the industry's best solution for protecting the driveline of a horizontal or tub grinder from catastrophic failure. It reacts in milliseconds to a direct hit. No other system has this response time, which ultimately will save you downtime and money. The system is a standard feature on most current models of Morbark Wood Hog Horizontal Grinders and Tub Grinders.
What safety features are included in Morbark tub grinders?
Safety features may include emergency stop buttons, safety guards and shields, remote control operation, automatic shutdown systems, and hydraulic tilt tub for easy maintenance and inspection. These features help protect operators and ensure safe operation.
How can I purchase a Morbark tub grinder or replacement parts?
Morbark tub grinders and genuine OEM replacement parts can be purchased through authorized dealers and distributors. You can find a dealer near you by using our dealer locator tool.
Keep your equipment running in top condition with genuine OEM Morbark parts! We offer the highest-quality wear parts, genuine Morbark replacement parts, wear parts for competitive equipment, remanufactured parts with a full warranty, used parts, full-service hydraulics, and much more!
With regular factory trainings for our dealers’ service professionals, you can also be sure that our global network of dealers will give you first-class support wherever you are.
Please click the Find a Dealer button below to locate your nearest Morbark dealer, or call our Parts/Service Customer Support Call Center at 800.255.8839.
