The Morbark 40/36 Whole Tree Drum Chipper is a compact and cost-effective chipper designed specifically for the biomass industry. It features the same reliable internal drive found in Morbark horizontal grinders, coupled with an extra-wide infeed opening. The 40/36 chipper efficiently processes brushy tops and limbs, quickly filling chip vans to their legal load capacity.

Morbark’s Advantage 3 Drum ensures consistent chip quality, while the heat-treated AR-450 steel drum skin extends wear life, reducing replacement costs and downtime. Its feed system is optimized with a staggered knife setup, reducing maintenance needs and enhancing efficiency.

This chipper boasts low fuel consumption per ton of chips produced, making it an economical choice. Its compact design, at 8’6” (2.59 m) wide, allows for easy transport without requiring special permits.

Specifications & Details

GENERAL US METRIC
Chipping Capacity 24" 60.96 cm
Infeed Opening 40" x 39" 101.6 cm x 99.06 cm
Length 37'5" 11.4 m
Height 12'4.25" 3.75 m
Width 8'6" 2.59 m
Gross Weight 52,500 lb 23,813 kg
Tongue Weight 22,750 lb 10,320 kg
Axle Weight 31,750 lb 14,400 kg
Engine CAT
Horsepower 800-875 HP 596.6 - 653 kW
Fuel tank capacity  300 gallons 1,135 L
Hydraulic oil capacity 187 gallons 708 L
Tires (4) Super Singles 385/65R/22.5 20-ply
Brakes Air
Towing Arrangement Fifth Wheel
Tracks Optional

What is a Morbark Whole Tree Drum Chipper?

A Morbark whole tree drum chipper is a robust, high-capacity machine designed for the efficient processing of whole trees and large woody debris into uniform wood chips. These chippers are essential in the forestry, biomass, and wood processing industries for their ability to handle large volumes of material quickly and reliably. Morbark offers a full line of whole tree drum chippers in a range of sizes and in several configurations-with cab and loader (WCL) or no cab and loader (NCL), on tracks or tires, diesel or electric powered. Add to these choices a wide variety of available options, and you’ve got the flexibility to customize the perfect chipper for your particular needs.

What types of materials can Morbark drum chippers process?

Morbark drum chippers can chip small, unmerchantable material into saleable products. Morbark drum chippers can handle various wood materials, including whole trees, logs, brush, and other woody debris. The Advantage 3™ drum also help create more uniform chips and reduces operating and maintenance costs.

What engine options are available for Morbark drum chippers?

Morbark drum chippers come with powerful diesel engines from reputable manufacturers such as Caterpillar, Cummins, or John Deere. Engine options are available to meet various emissions standards, including Tier 4 Final and Stage V compliance.

What are the key features of Morbark drum chippers?

Morbark drum chippers include many standard features that enhance machine durability and efficiency including a high-capacity feed system, the Morbark Integrated Control System for monitoring key systems to maximize performance and engine efficiency, large work platform, and more.

What safety features are included in Morbark drum chippers?

Safety features may include emergency stop controls, safety guards, operator cabs with ROPS and FOPS, and compliance with industry safety standards. Regular safety inspections and adherence to operating guidelines are essential.

How can I purchase a Morbark Drum Chipper or Replacement Parts?

Morbark drum chippers and genuine OEM replacement parts can be purchased through authorized dealers and distributors. You can find a dealer near you by using our dealer locator tool.

Keep your equipment running in top condition with genuine OEM Morbark parts! We offer the highest-quality wear parts, genuine Morbark replacement parts, wear parts for competitive equipment, remanufactured parts with a full warranty, used parts, full-service hydraulics, and much more!

With regular factory trainings for our dealers’ service professionals, you can also be sure that our global network of dealers will give you first-class support wherever you are.

Please click the Find a Dealer button below to locate your nearest Morbark dealer, or call our Parts/Service Customer Support Call Center at 800.255.8839.

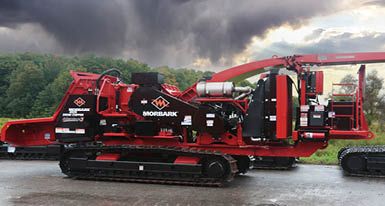

40/36 Track Whole Tree Drum Chipper
Take your machine to the material with the 40/36 track unit.
40/36 Feed System
Aggressive live floor and large top feedwheel ensure positive feed of brushy tops and limbs.

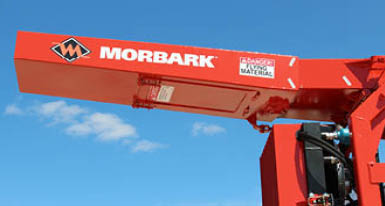

40/36 Directional Discharge Chute
Directional flow discharge chute is hydraulically adjustable by remote control for maximum chip loads.
40/36 Advantage 3 Drum
The Advantage 3™ drum creates more uniform chips and reduces operating and maintenance costs.
Morbark Integrated Control System
The Morbark Integrated Control Systems (MICS), the ultimate diagnostic system, monitors hydraulic pressures, temperatures, clutch systems and engine efficiency to maximize performance.

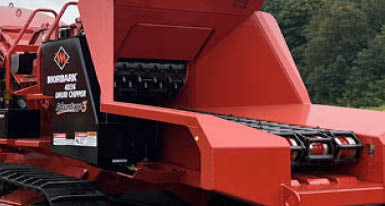

Sloped Infeed System
Sloped Infeed System consists of a top compression feed roll with internal drive, bottom feed wheel and a live floor equipped with three strands of WDH-120 chain in a staggered configuration

Its robust drum design and powerful feed system process whole trees and large limbs with ease, producing uniform chips ideal for biomass energy and pulp operations.
