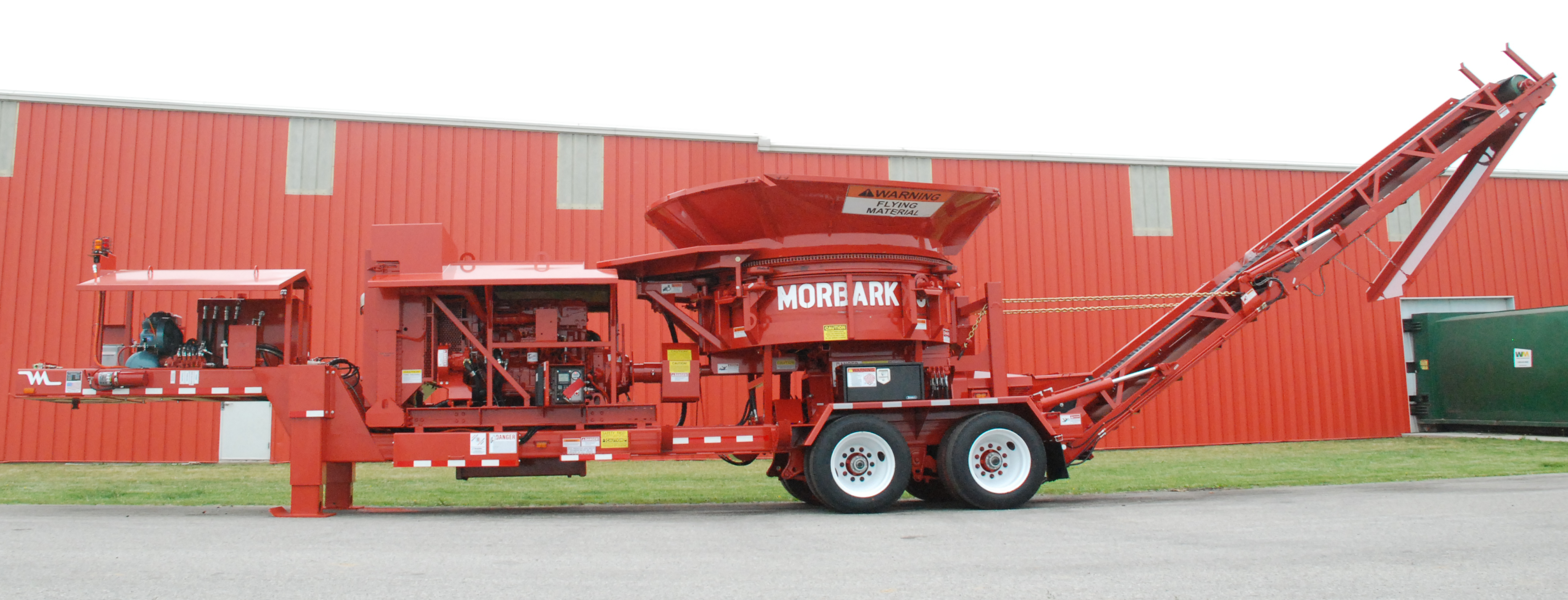

The compact yet powerful Morbark 1000 Tub Grinder is tailored for lower volume applications such as land clearing, wood waste recycling, municipalities, and compost facilities. Despite its size, this grinder packs a punch with features comparable to Morbark’s larger models.

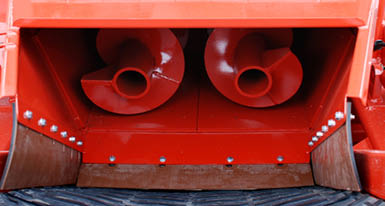

Enjoy the convenience of the Morbark Integrated Control System (MICS), enabling seamless monitoring of key systems and feed rate adjustments. The model's proven drive line protection system with torque limiter ensures reliable operation. Hydraulic augers swiftly remove material, preventing clogs, while a pinned rotor system and heavy-duty grates facilitate the production of various end products.
For added versatility, consider the optional hinged tub flares, perfect for transportation purposes. Experience efficiency and performance in a compact package with the Morbark 1000 Tub Grinder.
Specifications & Details
| GENERAL | US | METRIC |
| Length (transport) | 34' 6" | 10.5 m |
| Length (operating) | 54'2" | 16.5 m |
| Height (transport) | 12' 10.25" | 3.9 m |
| Width | 8'6" | 2.59 m |
| Gross Weight (approximate) | 34,500 lb | 153,649 kg |
| Axle Weight (approximate) | 20,440 lb | 9,271 kg |
| Tongue Weight (approximate) | 8,300 lb | 3,764 kg |
| Engine | CAT | |
| Horsepower | 577 HP | 430.3 kW |
| Fuel Capacity (tank) | 160 gallons | 605 litres |
| Hydraulic Oil | 120 gallons | 454 litres |
| Screen Area | 1,900 sq in | 12,258 sq cm |
| Tires | (8) 255/70R/22.5 | |
| Towing Arrangement | Pintle hitch or Fifth wheel | |
| Brakes | Air |
What applications are Morbark tub grinders used in?
Morbark tub grinders are designed for the most challenging recycling applications. They excel at processing yard waste, pallets and other mixed woody feedstocks into saleable products. They can be used for processing whole trees, stumps, brush, construction and demolition debris, wood waste, and green waste.
What features are included on Morbark tub grinders?
Morbark tub grinders are equipped with hydraulic augers that allow the operator to quickly remove product beneath the mill, a full breakaway torque limiter system to protect the engine and clutch, a laser-cut, factory-balanced mill, and more.
What is the difference between tub grinders and horizontal grinders?
Both Morbark horizontal and tub grinders excel at processing wood waste into saleable products. Choosing between a horizontal grinder and a tub grinder depends on your specific needs, including the types of materials you need to process, desired output size and consistency, mobility requirements, space availability, and budget considerations. Horizontal grinders allow for continuous feeding of long and straight material, while tub grinders are ideal at processing bulky and irregularly shaped materials like whole trees, stumps, brush, and demolition debris.
What is the benefit of the externally adjustable break-away torque limiter?
For over a decade, Morbark's exclusive, Break-away Torque Limiter, has proven to be the industry's best solution for protecting the driveline of a horizontal or tub grinder from catastrophic failure. It reacts in milliseconds to a direct hit. No other system has this response time, which ultimately will save you downtime and money. The system is a standard feature on most current models of Morbark Wood Hog Horizontal Grinders and Tub Grinders.
What safety features are included in Morbark tub grinders?

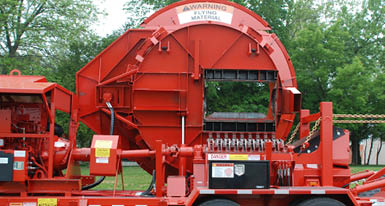

Safety features may include emergency stop buttons, safety guards and shields, remote control operation, automatic shutdown systems, and hydraulic tilt tub for easy maintenance and inspection. These features help protect operators and ensure safe operation.
