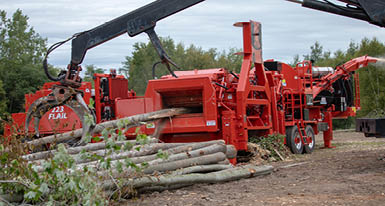

The 223 Flail is specifically designed to complement chippers like the Morbark 23 Chiparvestor®, the 40/36 Whole Tree Drum Chipper, or similar machines. It features a large 56” x 23” (142.24 cm x 58.42 cm) infeed opening, capable of accepting logs up to 23” (58.42 cm) in diameter at a feed rate ranging from 70 to 150 feet per minute.
Utilizing the Morbark Integrated Control System, operators can finely adjust the feed rate and flail drum speed. This precision control maximizes bark removal while minimizing the removal of "good" fiber, resulting in superior end products.
Specifications & Details
| GENERAL | US | METRIC |
| Length (transport) | 33'5" | 10.18 m |
| Length (operating) | 25'2" | 7.67 m |
| Height (transport) | 9'11" | 3.04 m |
| Height (operating) | 13'4" | 4.06 m |
| Width | 9'10" | 3.0 m |
| Gross Weight | 46,700 lb | 21,185 kg |
| Infeed Opening | 56" x 23" | 142.24 cm x 58.42 cm |
| Tandem Axle | 45,000 lb (20,411.66 kg) suspension | |
| Engine | CAT | |
| Horsepower | 375 HP | 279 kW |
| Fuel tank capacity | 230 gallons | 870 litres |
| Hydraulic oil capacity | 200 gallons | 757 litres |
| Tracks | Optional 320L Caterpillar | |
What applications are flails used in?
Forestry flails are mainly used for debarking trees, removing foliage, and preparing logs for further processing. They are essential in the production of clean wood chips for biomass energy and other wood products. Morbark offers a full line of flails in several different sizes and configurations, including two-, three-, or four-flail drums; one or two engines; cab and loader or no cab and loader; portable or stationary; stand alone or combination unit; diesel or electric powered, along with a wide variety of options allowing you to customize the perfect flail for your needs.
What are the benefits of using a forestry flail?
Benefits include efficient debarking and foliage removal, production of clean wood chips, improved quality of biomass fuel, and reduced need for manual labor. Forestry flails also enhance the value of the processed wood by preparing it for further use.
What is the difference between flail chiparvestors and stand-alone flails?
Flail chiparvestors such as the model 2755 are integrated machines designed for efficient, in-field processing of whole trees into clean wood chips, combining debarking and chipping in a single operation. They are ideal for large-scale operations where mobility and streamlined workflow are critical.
Stand-alone flails are specialized machines focused solely on debarking, used in conjunction with separate chippers such as Morbark Chiparvestors. They are suitable for operations that benefit from maintaining separate control over debarking and chipping processes, often in more fixed or semi-fixed locations.
Choosing between a flail chiparvestor and a stand-alone flail depends on the specific needs of your operation, including the scale of production, desired workflow efficiency, and investment considerations.
What maintenance is required for operating a flail?
Regular maintenance includes inspecting and replacing worn chains or knives, lubricating moving parts, checking hydraulic and engine systems, and ensuring safety guards are in place. Proper maintenance is crucial for optimal performance and longevity.
How can I purchase a Morbark flail or replacement parts?
Morbark flail Chiparvestors, stand-alone flails, and genuine OEM replacement parts can be purchased through authorized dealers and distributors. You can find a dealer near you by using our dealer locator tool.
