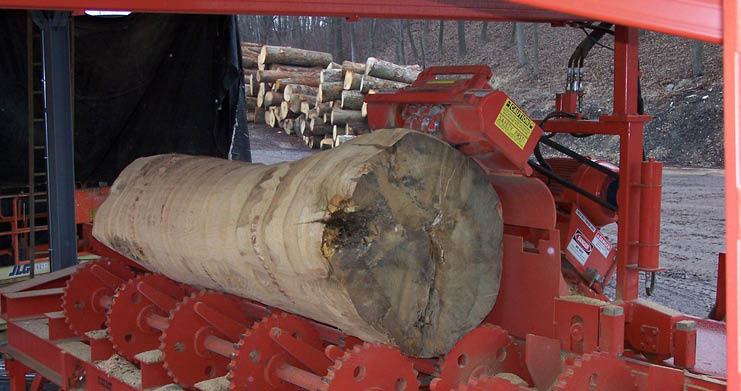

The Morbark Rosserhead Debarker incoporates the best features found on the market today, all in one heavy-duty unit. It includes hydraulic down pressure control on the debarking head, a hydraulic carriage control system, a deluxe operator's cab, and hydraulically controlled tapered depth shoes. Moreover, its hydraulic system is designed to accommodate additional equipment like live decks, waste conveyors, log troughs, and metal detectors.
Specifications & Details
| GENERAL | US | METRIC |
| Capacity (diameter range) | 6" – 48" | 15.2 cm – 121.9 cm |
| Debarking head | 6-section, 42 teeth, 15" (38.1 cm) diameter | |
| Debarking head drive motor | 50-hp (37.3 kW) TEFC double end | |
| V-belt drive | C-section Gripnotch belts | |
| Frame construction | 12" WFB & 8" WFB | 30.5 cm and 20.3 cm |
| Controls | control console, separate from machine | |
| Log rotation wheels, 6 sets | 25" diameter, 2" thick | 63.5 cm diameter, 5.1 cm thick |
| Log rotation shafts | 3.4" with Anson bearings | 8.7 cm |
| Log kicker arms (6) | 1.5" thick on a 3.4" shaft | 3.8 cm thick on a 8.7 cm shaft |
| Kicker cylinders (2) | 3" diameter hydraulic | 7.6 cm diameter |
| Carriage drive | 2000 series hydraulic 100 H roller chain | |
| Carriage speed | 0-250 FPM | 0-76.2 m/min |
| Bull wheel drive | variable hydraulic, 10,000 series hydraulic motor with adjustable chain tightener | |
| Rotating speed | 0-50 RPM | |
| Machine weight – 648 | 26,320 lb (648) | 11938 kg |
