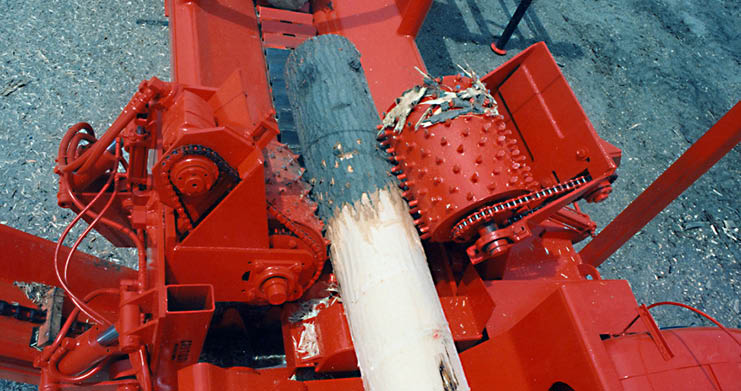

The Morbark 640 Debarker is a multi-purpose debarker suitable for chip plants and sawmills, capable of handling both softwoods and hardwoods. It boasts the speed to debark small logs and the power to handle larger ones. Featuring adjustable front and back yoke assemblies, operators can easily center logs of varying diameters on the cutterhead.
The hydraulic system is designed with proper reliefs to minimize shock loads on the machine's components, reducing downtime and maintenance costs. The infeed and outfeed conveyors are trough-type and adjustable in length, with the infeed conveyor made from sturdy 0.6" (1.6 cm) formed plate steel equipped with Morbark’s durable all-steel welded track-type chain.
Specifications & Details
| GENERAL | US | METRIC |
| Length (with infeed and outfeed sections) | 53'1" | 16.2 m |
| Width (debarker section) | 11'6" | 3.5 m |
| Height (debarker section) | 8'10" | 2.69 m |
| Weight (debarker section) | 14,000 lb | 6350 kg |
| Infeed weight (standard) | 8,000 lb | 3629 kg |
| Outfeed weight (standard) | 7,000 lb | 3175 kg |
| Capacity (diameter range) | 6" – 40" diameter | 15.2 cm – 101.6 cm |
| Production rate | up to 100 lineal feet/minute | up to 30.48 m/min |
| Engine | Electric or diesel | |
| Horsepower (electric) | 50 hp, 75 hp, or 100 hp | 37.3 kW, 55.9 kW, or 74.6 kW |
| Horsepower (diesel) | 185 hp | 138 kW |
| Auxiliary power | 50 hp | 37.3 kW |
- Longer or shorter infeed with 13" (33 cm) track-type chain
- Longer or shorter outfeed with WD-110 chain
- 25' (7.6 m) trough outfeed conveyor with 19" (48.3 cm) track-type chain in lieu of standard
- 25' (7.6 m) trough infeed conveyor with 19" (48.3 cm) track-type chain in lieu of standard
- Longer or shorter infeed and outfeed conveyors with 19" track chain
- 10,000 Series conveyor drive in lieu of standard
- 13" x 0.8" (33 cm x 1.9 cm) UHMW Duralite wear strip for infeed and outfeed conveyors
- 19" x 0.8" (48.3 cm x 1.9 cm) UHMW Duralite wear strip for infeed and outfeed conveyors
- Hydraulic oil temperature and level control
- Hydraulic oil tank heater
- All-weather operator’s cab. Cab is 54" wide x 58" x long x 6'8" tall (137.2 cm x 147.3 cm x 2 m) and includes two side sliding windows for cross ventilation
- Side-mounted combination air conditioner/heater unit for cab enclosure
- Heavy-duty underneath bark auger
- Hoses are provided to position operator’s console approximately 4' (1.2 m) from the debarker center section. Cab positions requiring longer hoses are available.
- Center Section ONLY, complete with all standard equipment 16° Yoke setting for high speed debarking up to 20" (50.8 cm) diameter logs
- Hydraulic powered raise and lower of outfeed conveyor
- Veneer package: 6° top yoke, Veneer cutterhead and table, modified back and top wheels
- Morbark Old-Style Cutterhead, in lieu of standard
- 0.5" (1.3 cm) panning in lieu of 0.6" (1.6 cm)
- Additional 3-arm manual kickers
- 4-arm manual with dual cylinder
- Additional 4-arm manual kickers
